• LT315/70R17 all-terrain BSW tires
• 17" cast aluminum wheels w/painted & machined finish
• Full-size spare tire w/lock, under frame winch-type carrier, safety catch
• Hood w/air extractors
• Front/rear microcellular jounce bumpers
• Unique front bumper w/foundry finish & body-color fascia
• Unique rear bumper w/painted foundry finish
• Cast aluminum running boards
• Unique front/rear wheel lip moldings w/foundry finish
• Black front/rear stone cuffs
• Outer scuff pad

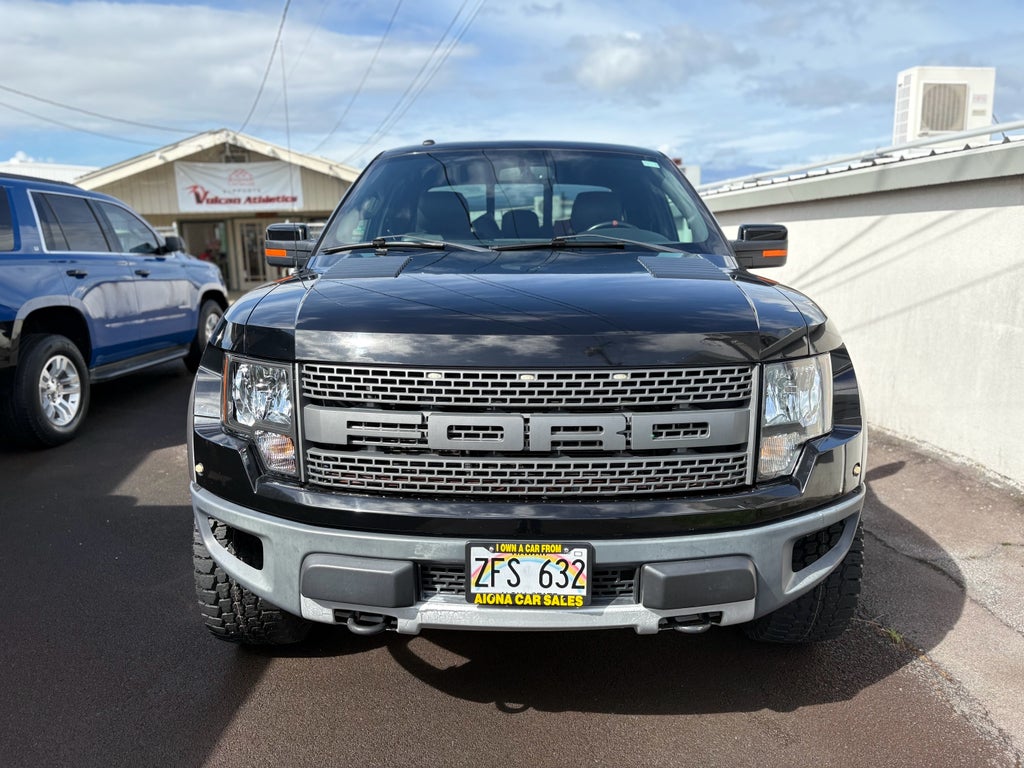

• Brick wall front grille
• Blacked out headlamps & tail lamps
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Integrated marker lights
• Black pwr side mirrors
• Pwr sliding rear window
• Rear privacy tint glass
• Variable speed intermittent wipers
• Flared front fenders w/air extractors
• Unique tailgate badge
• Removable tailgate w/key lock & lift assist

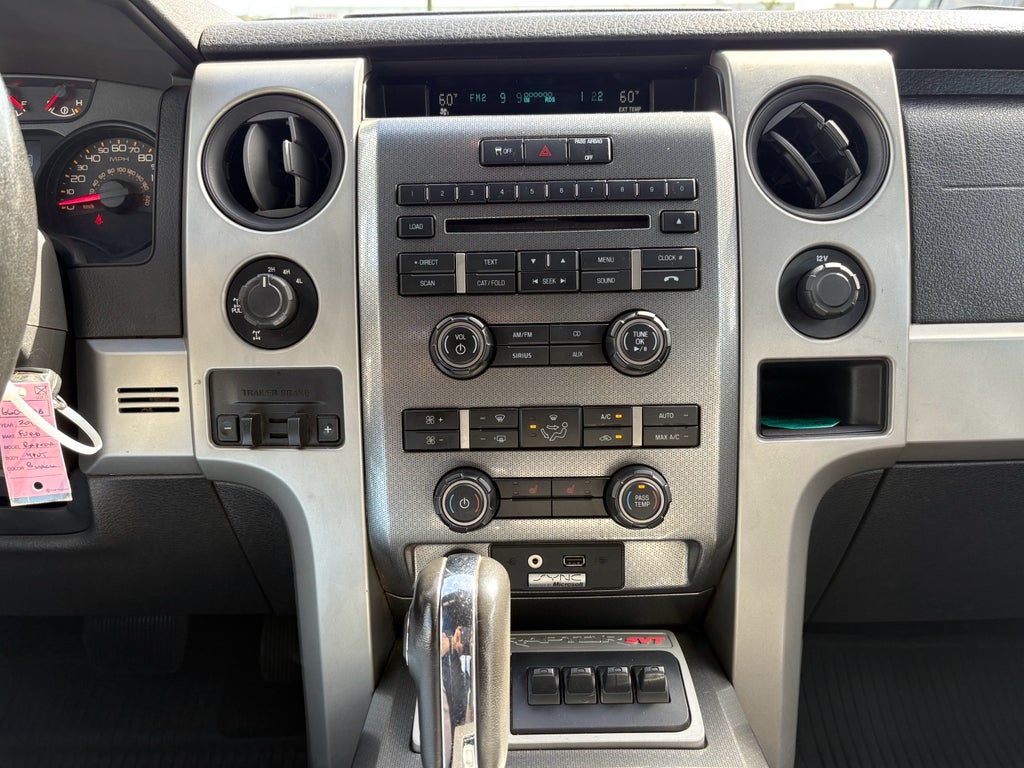

• AM/FM stereo w/CD/MP3 player -inc: clock, speed compensated volume control, aux audio input jack
• SIRIUS satellite radio -inc: roof-mounted antenna, (6) month subscription *N/A in Alaska or Hawaii*
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, turn-by-turn navigation, real-time traffic

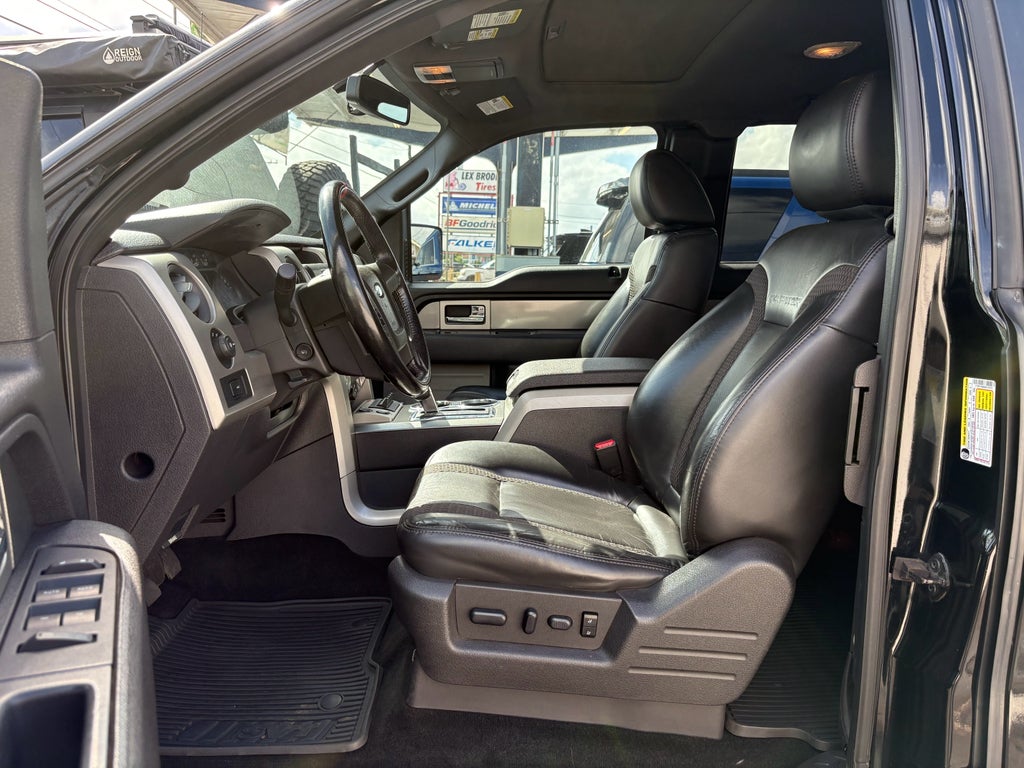

• Unique leather/cloth bucket seats w/6-way pwr driver seat, console, seat back bolsters

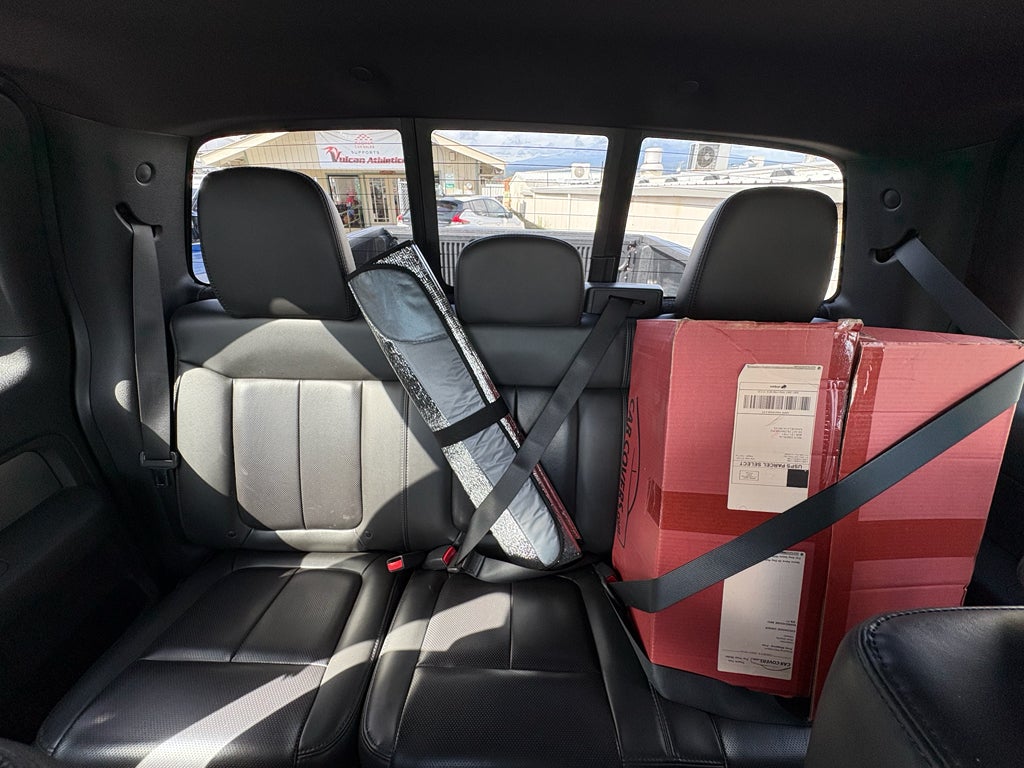

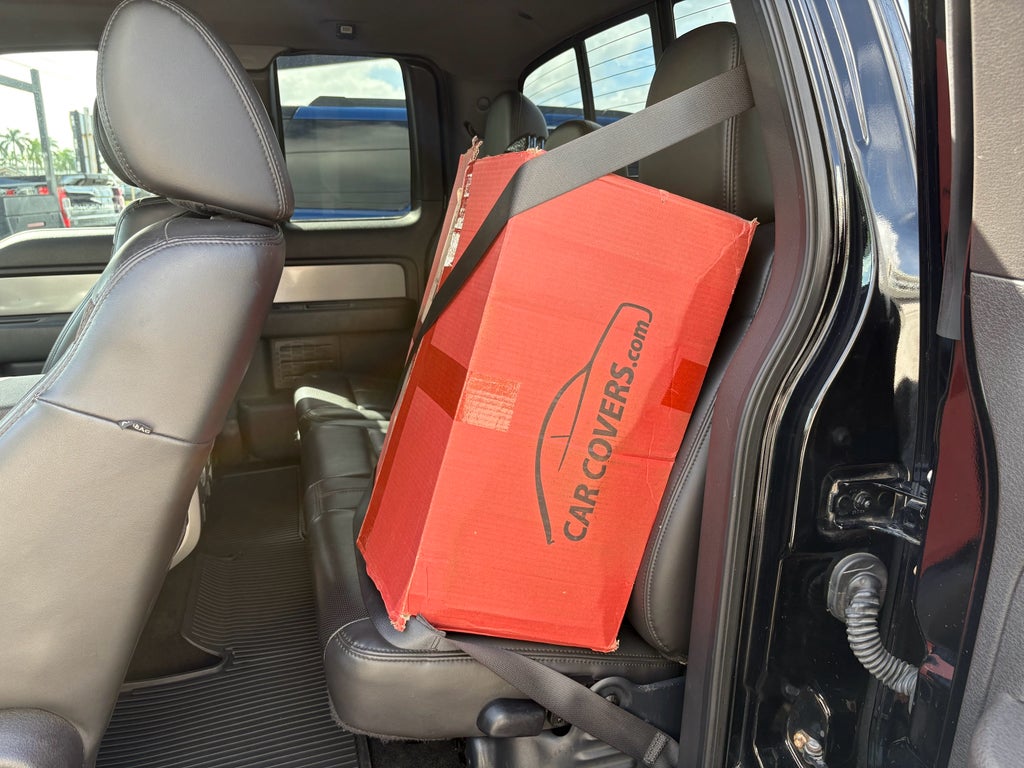

• Unique vinyl 60/40 flip-up rear split bench seat
• Unique rubber front/rear floor mats w/SVT logo
• Driver & front passenger door scuff plates
• Unique leather-wrapped steering wheel w/thumb pads, audio controls & memory
• Tilt steering column

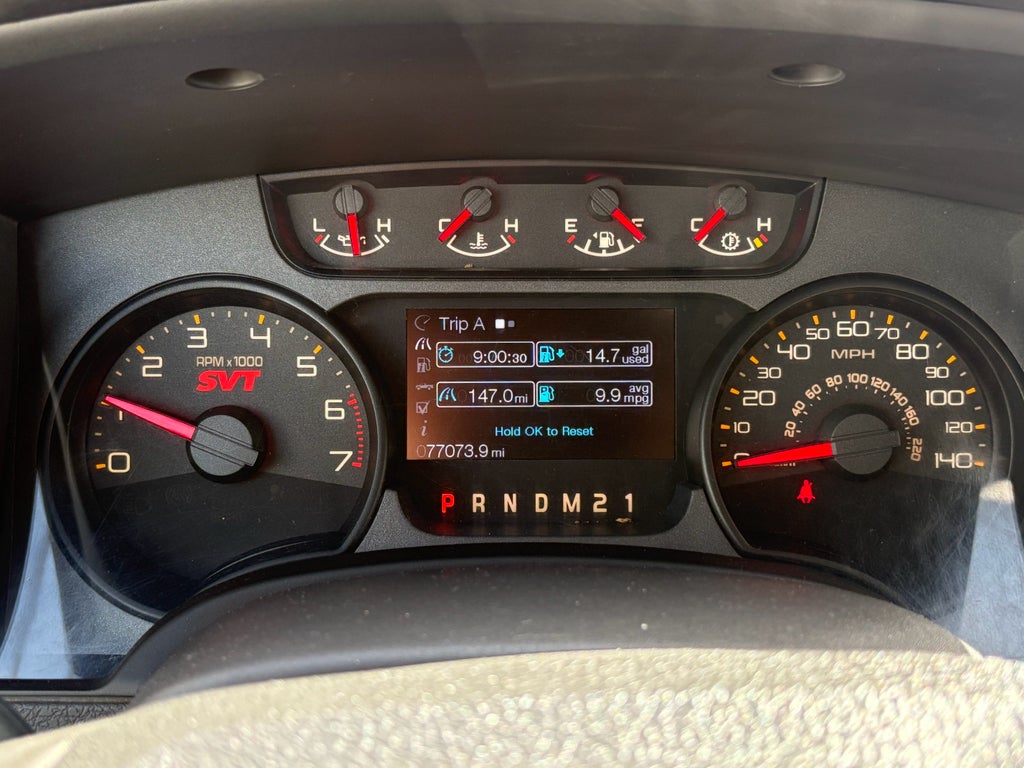

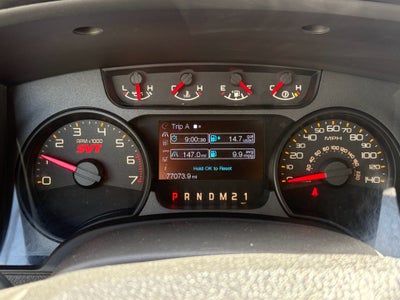

• 4.2" LCD screen in cluster
• Customer info display
• Outside temp gauge
• Pwr windows w/driver side 1-touch down
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Driver side SecuriCode keypad entry
• Perimeter alarm
• Remote keyless entry w/integrated key transmitter, illuminated entry & panic button
• Cruise control
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Rear window defroster
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Console top switches -inc: hill decent, easy off road mode, aux switch pack
• Unique IP center stack & door trim applique finish
• Auto-dimming rearview mirror w/compass
• Front passenger side A-pillar grab handle

• Anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Dual stage driver & passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

RAPTOR LUXURY PKG

• heated 10-way pwr driver/front passenger seat w/driver memory
• dual zone electronic automatic temp control (DEATC) air conditioning
• AM/FM stereo w/Sony multi-disc in-dash CD & MP3 changer
• body-color pwr folding pwr heated side mirrors w/turn signals/memory/drivers auto-dimming
• pwr adjustable pedals w/memory
• remote start

RAPTOR PLUS PKG

• rearview camera
• trailer brake controller

• Raptor Luxury Package: Dual Electronic Automatic Temperature Control; 10-Way Power Adjustable Driver and Passenger Seat; Heated Front Seats; Heated PowerFold Sideview Mirrors; Driver Memory; Power Adjustable Pedals with Memory; Remote Start
• Raptor Plus Package: Trailer Brake Controller; Rearview Camera
• Order Code 517A: Electronic Locking with 4.10 Axle Ratio; 17" Cast Aluminum Wheels; 6.2L 2V EFI V8 Engine; Electronic 6-Speed Automatic Transmission; Unique Leather/cloth Front Seat; LT315/70R17 BSW A/T Tires; 7
• 000 lbs Payload Package GVWR; AM/FM Single CD Radio with Clock
• Exterior Graphics Package
• Power Moonroof
• Hood Graphics Package
• Rear mounted camera
• Selective service internet access
• Cruise control with steering wheel mounted controls
• Keyfob remote start
• Heated driver and front passenger seats
• First-row sliding and tilting glass sunroof with express open activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Triton 6.2L V-8 variable valve control
• regular unleaded
• engine with 411HP
• Triton 6.2L V-8
• MyKey restricted driving mode/alerts
• SecuriCode external keypad door lock control
• Mechanical
• Bluetooth® wireless audio streaming
• Dual-zone front climate control
• SecuriLock immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill descent control
• Automatic climate control
• Rear parking sensors
• 3 12V power outlets
• Front fog lights
• Leather steering wheel
• Heated driver and passenger side door mirrors
• Auto-dimming driver side mirror
• PowerFold power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Power adjustable pedals
• Upfitter switches
• 17 x 8.5-inch front and rear machined aluminum wheels
• LT315/70SR17 AT BSW front and rear tires
• Cloth and leather front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• Power rear windshield
• 6-speed automatic
• Selectable mode transmission
• Vinyl rear seat upholstery
• Rear under seat climate control ducts

• Mileage
• Fuel Economy Est-Combined (MPG): 12
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 14
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 19.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 3406
• Curb Weight - Rear (lbs): 2600
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 12400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3750
• Axle Capacity - Rear (lbs): 3500
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 47.0
• Shock Absorber Diameter - Rear (mm): 47.0
• Stabilizer Bar Diameter - Front (in): 1.08
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 9.1
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 9.0
• Tires
• Front Tire Size: LT315/70R17
• Rear Tire Size: LT315/70R17
• Spare Tire Size: LT315/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.5
• Rear Wheel Size (in): 17 x 8.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: 20.0
• Turning Diameter - Curb to Curb (ft): 43.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 133.3
• Length, Overall w/o rear bumper (in): 220.6
• Width, Max w/o mirrors (in): 86.3
• Height, Overall (in): 78.5
• Overhang, Front (in): 38.0
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 153.6
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 40.9
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 39.7
• Second Leg Room (in): 33.4
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 65.4
• Summary
• Vehicle Name: Ford F-150
• Body Style: SuperCab Pickup
• Body Code: 133" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 15.5
